Non-PFC, complete protections
Most economical medium power models with safety    certificate
No    load    power    consumption<0.75W
1U    low    profile:    30mm
Output    voltage:    3.3V,    4.2V,    5V,    12V,    15V,    24V,    36V,    48V
Non-PFC, complete protections
Economical medium to high power models with safety certificate
Built-in active PFC function
Full range input, complete functions

www
Built-in active PFC function (HSP/HDP series)
Output voltage: 2.5V, 2.8V, 3.6V, 3.8V, 4.2V, 5V for HSP series 4.2V, 5V for HSN series   2.8V, 4.2V, 5V for NEL series
  24V, 36V, 48V for ERP-350 series 2.8V / 3.8V for HDP series
Suitable for high efficiency moving sign applications
Conformal coating (HSP/HDP/NEL/HSN series)
Semi-potted and design against rain splash (ERP-350)
Output voltage programmable from 20~110%
1U low profile
Built-in active PFC function
Fanless design
Low profile with active PFC function
With complete functions for 750W~ 3000W
Built-in parallel function for 1000W~3000W
3 phase 3-wire /  196~305VAC or    3 phase 4-wire / Y 340~530VAC
Built-in active PFC function
High efficiency up to 91%
Io/Vo can be trimmed 20~100% by external signal
Built-in parallel function
Built-in active PFC function
High efficiency, no load power consumption <0.5W~0.75W
Medical enclosed type, built-in active PFC
Medical safety approved (MOOP level)
High efficiency, no load power consumption<0.5W~0.8W
Built-in active PFC function
96% high efficiency
No load power consumption <0.5W at remote OFF
Fanless design
Io/Vo adjustable through internal potentiomenter
Suitable for general industrial applications in harsh environment
No load power consumption<0.75W (1W for MDR-100)
Assemble on industrial rail TS35 / 7.5 or 15
Built-in active PFC and over temperature protection    (MDR-100)
DC OK signal output (MDR-10/20)
DC OK relay contact (MDR-40/60/100)
Class I, Div 2 Hazardous Locations T4 (MDR-40/60)
Io can be adjusted 10~100% by 1~10VDC, PWM signal or resistance
Assemble on industrial rail TS35 / 7.5 or 15
Suitable for machine vision inspection system and plant cultivation applications
Isolation class II
No load power consumption <0.5W (DR-15)
No load power consumption <1W (DR-100)
Assemble on industrial rail TS35 / 7.5 or 15
Suitable for building automation and control of household appliance
Fanless design
Models over 240W(includes) built-in PFC function
Fanless design
Three phase or high input voltage range (340~550VAC)
Low cost and slim design
Assemble on industrial rail TS35 / 7.5 or 15
Economical and slim design
Assemble on industrial rail TS35 / 7.5 or 15
Slim design and high efficiency up to 94%
Built-in active PFC function (except for SDR-75)
Assemble on industrial rail TS35 / 7.5 or 15
Built-in DC OK relay contact (except for SDR-75)
150% peak load capability (130% for SDR-960)
Slim design and 180~550VAC wide input range (single and two phase)
High efficiency up to 93%
Built-in active PFC function (240W & 480W)
Assemble on industrial rail TS35 / 7.5 or 15
Built-in DC OK relay contact
20A redundant module & 40A DC UPS module
Free configuration, highly flexible, customized standard PSU
Cover all output voltages from 1.6~53VDC
Built-in active PFC
Suitable for multi-output, complex equipment or systems
19", 1U rack power unit
RCP-MU / RKP-CMU1: Control and monitoring unit (Built-in I2C / PMBus decoder)
With UPS function (need external batteries)
Suitable for security industry or battery backup systems
Built-in active PFC function (PSC-160)
Case available
With UPS function (need external batteries) for AD/ADD series
Suitable for security industry or battery backup systems
With UPS function (need external batteries)
Suitable for security industry or battery backup systems
Assemble on industrial rail TS35 / 7.5 or 15
Low profile for 1U/2U for rack system
Suitable for industrial PC applications
Assemble on the main PCB of the system
Medical safety approved (2xMOPP) for PM and NFM series
Suitable for BF application with appropriate system consideration for PM and NFM series
Industrial safety approved for IRM series
No load power consumption<0.1W for IRM series
NFM PCB type ; PM encapsulated type IRM miniature encapsulated type
Slim design and 340~550VAC high input range (three phase)
High efficiency up to 94.5%
Built-in active PFC function
Assemble on industrial rail TS35 / 7.5 or 15
Built-in DC OK relay contact
Economical non-PFC models
Miniature size with complete protections
Economical models with complete safety certificates
PCB type, non-PFC for small wattage models
Multiple form factors for different installations: 7 x 4.25, 5 x 3, 4 x 2, slim type
Compact PCB type, non-PFC for small wattage models (15W~65W)
No load power consumption <0.3W~0.5W
Suitable for ErP regulated end systems
PCB type, non-PFC for small wattage models
Medical safety approved (2xMOPP)
Low leakage current
SUitable for BF application with appropriate system consideration for selected models
CE declaration only for models with active or passive PFC if higher than 150W
Fanless design for PB-300,    HEP-600C, GC series
No load power consumption<1W for GC series (<0.5W for GC120 and HEP-600C)
Suitable for battery back up system, electrical wheelchair,
  electrical scooter, trailer, or general consumer electronic products
Suitable for general industrial applications in harsh environment (HEP-600C)
On board module type, assemble on the main PCB of the system
Single, dual, triple output models
On board PCB type, assemble on the main PCB of the system
Ultra-low profile
3:1 ~ 4:1 wide input range
Non-isolated for NID series
2:1 wide input range
CE declaration
Built-in systems and low cost
DC/DC converter with metal chassis
Comply with EN50155 railway certificate for RSD family
CE declaration
Suitable for battery backup system or transportation vehicle
True sine wave output
Input voltage: 100~550VDC; Output voltage: 180~264VAC
Transformerless    design
High efficiency up to 96%
1~2 sets of MPPTs
Graphic    LCD    display
RS485    communication    interface
Complete    protections
Real-time monitoring software
IP65    design
Modified sine wave output, suitable for resistive load
Low cost
1    year    warranty
True sine wave output, suitable for motor related applications
High surge power up to 200%
Output voltage / frequency adjustable
Conformal coating (except for TS-200/400)
True sine wave with solar charger & by-pass function
High surge power up to 200%
Output voltage / frequency adjustable
Conformal coating (except for TS-200/400)
Computer-based monitoring software, recommended for Windows 7 and Windows 8 Operating System
Remote controller for TS-700~3000 , TN-1500~3000
ISI-500: Modified sine wave with MPPT solar charger
ISI-501: True sine wave with MPPT solar charger
High surge power up to 200%
G3 Series 15W~150W
Ne Series 15W~350W
PFC Series 75W~750W
Modular Series 450W~1000W
Security Series - Enclosed Type 35W~155W
Lrs Series 200W~350W
Se Series 100W~1500W
Moving Sign 150W~400W
SPV Series 150W~1500W
U-Bracket 150W~500W
RSP Series 75W~3000W
RST Series 5000W~10000W
G5 Series 75W~600W
MSP Series 100W~600W
HEP Series 600W
MDR series 10W~96W
DRA series 40W~60W
Class II Type / Step Shape 15W~100W
General Type - Single Phase 45W~480W
General Type - Three Phase or High Input Range 120W~960W
EDR series - Slim Single Phase 75W~150W
NDR series - Slim Single Phase 75W~120W
SDR Series Slim Single Phase 75W~960W
TDR Series Slim Three Phase 960W
WDR Series Slim Wide Input Range 120W~480W
Peripheral
19" Rack Power 1000W~18000W
Security Series - PCB Type 35W~160W
Security Series - DIN Rail Type 40W~100W
ATX PC Power 200W~300W
On Board Type 5W~30W
General PCB Type 5W~250W
Green PCB Type 15W~300W
Medical PCB Type 30W~300W
Charger 30W~1000W
Module Type 0.5W~150W
On Board Type 5W~60W
PCB Type 5W~45W
Enclosed Type 15W~1000W
Grid-Tied DC/AC Solar Inverter 3000W~4600W

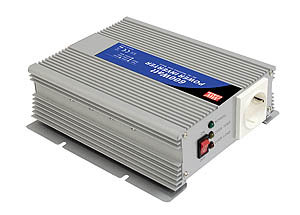

Modified Sine Wave 100W~2500W

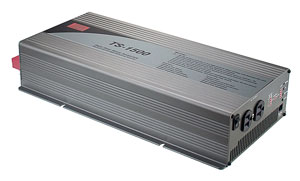

True Sine Wave 200W~3000W

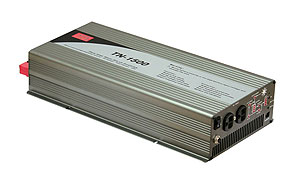

True sine wave with solar charger  1500W~3000W

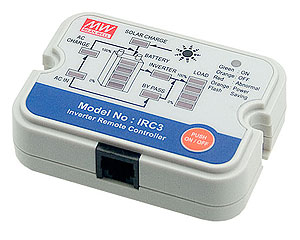

Remote controller
Solar Inverter with MPPT function 500W
